During my whole career with VMware vSphere, I’ve been using Fibre Channel as a storage protocol. When it comes to a home lab I’ve tried iSCSI Nexenta iSCSI installation and configuration for ESXi and iSCSI Software Adapter configuration using vSphere Web Client f but I find the configuration more complex than using NFS exports. Today I will show you how to add NFS 3.0 export to VMware ESXi 6.*.

Without further due let’s add NFS export to VMware ESXi 6.5.

Add NFS export to VMware ESXi 6.5

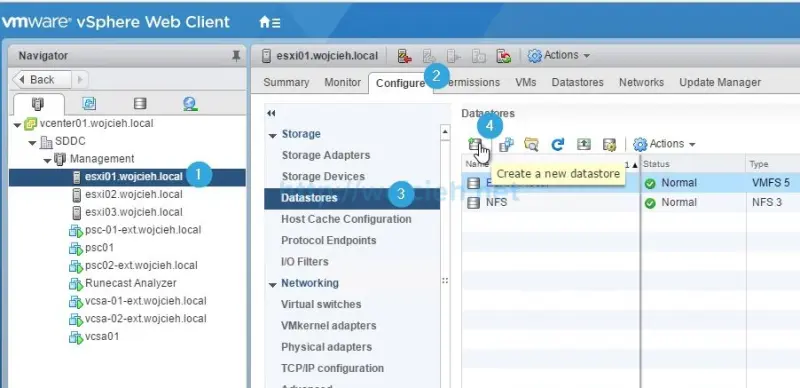

  1. Login to vSphere environment and select ESXi host.Click Configure -> Datastores and choose the icon for creating new datastore.
    How to add NFS export to VMware ESXi 6.5 - 1

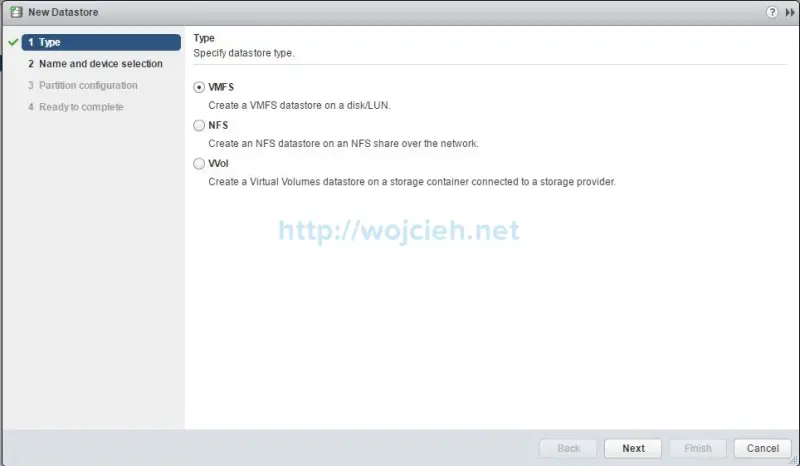

  2. On the New Datastore, creation wizard, choose NFS and click next.
    How to add NFS export to VMware ESXi 6.5 - 2

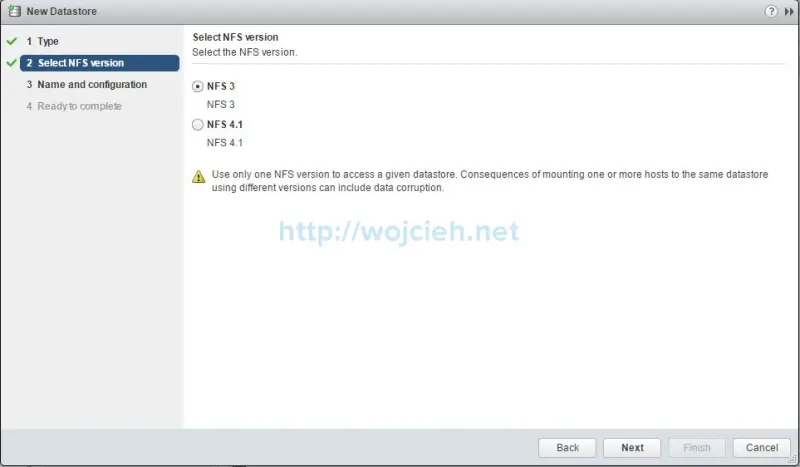

  3. Choose NFS 3.0 as an NFS version and click next.
    How to add NFS export to VMware ESXi 6.5 - 3
  4. Provide datastore name, folder, and server and click next.
    How to add NFS export to VMware ESXi 6.5 - 4

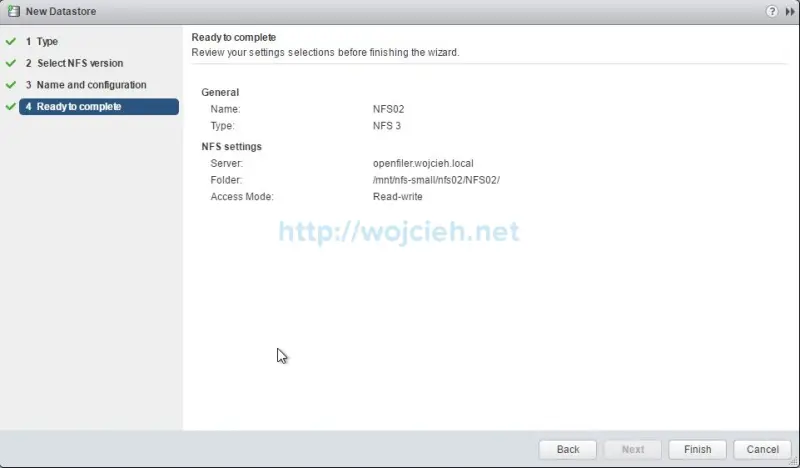

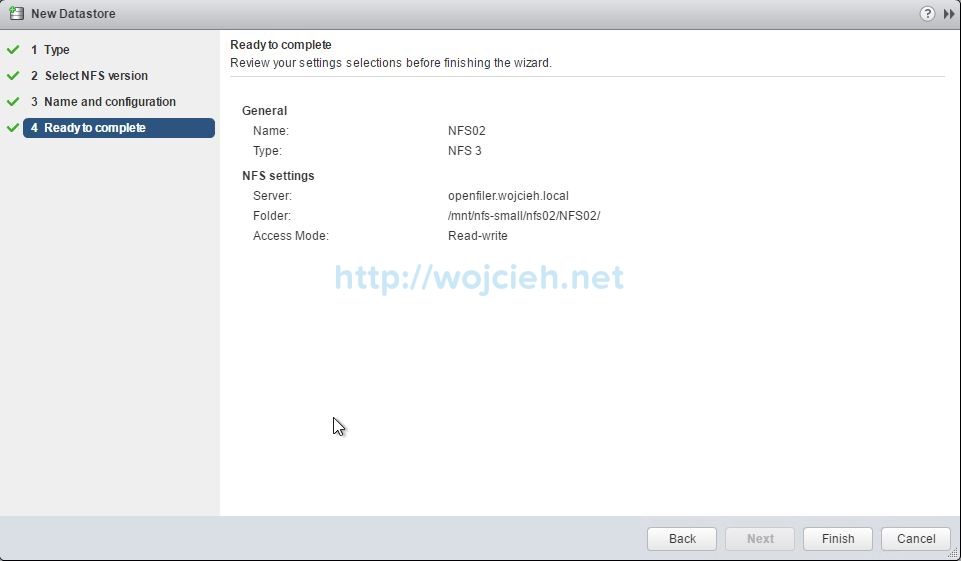

  5. On the ready to complete section simply click Finish.
    How to add NFS export to VMware ESXi 6.5 - 5

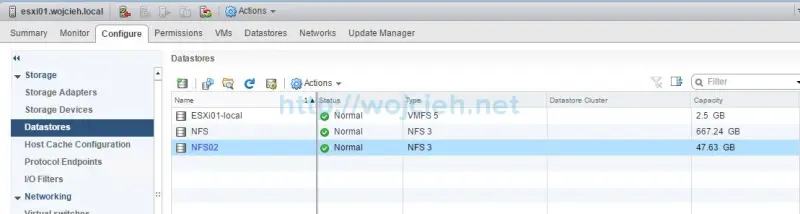

  6. New NFS based datastore was created.
    How to add NFS export to VMware ESXi 6.5 - 6

Mount NFS Datastore to additional Hosts

Starting from vSphere 6.0 VMware introduced really handy feature to mount NFS Datastore to additional hosts directly from Web Client.

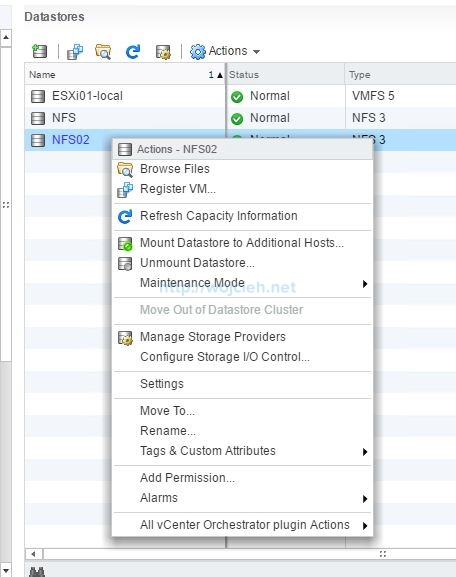

  1. Choose datastore you would like to add to additional Hosts and select Mount Datastore to Additional Hosts.
    How to add NFS export to VMware ESXi 6.5 - 7
  2. Choose ESXi hosts that you want to mount the datastore on. Click Ok.
    How to add NFS export to VMware ESXi 6.5 - 8

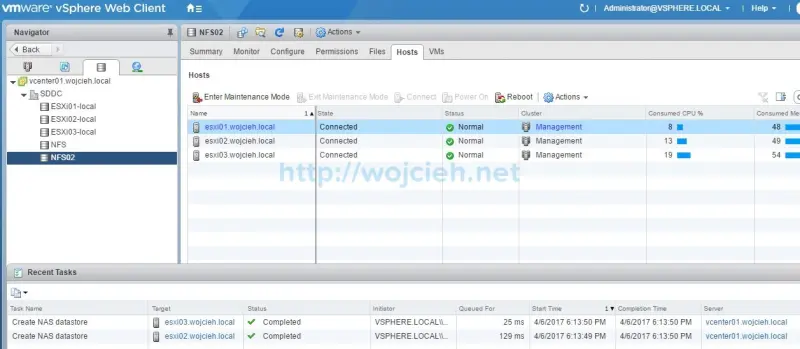

  3. After few second NFS Datastore will be added to previously selected ESXi servers.
    How to add NFS export to VMware ESXi 6.5 - 9

Summary

As you saw, the procedure isn’t extremely complicated and greatly improved. I really love how easy it is to mount NFS datastores to additional ESXi hosts.
