How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer

Keeping your ESXi up to date can be done in several ways. Today I will show you how to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer.

Without further due let’s start to upgrade ESXi using Interactive Installer.

ESXi 6.0 upgrade  to ESXi 6.5 using Interactive Installer

  1. Login to ESXi console and mount ISO.

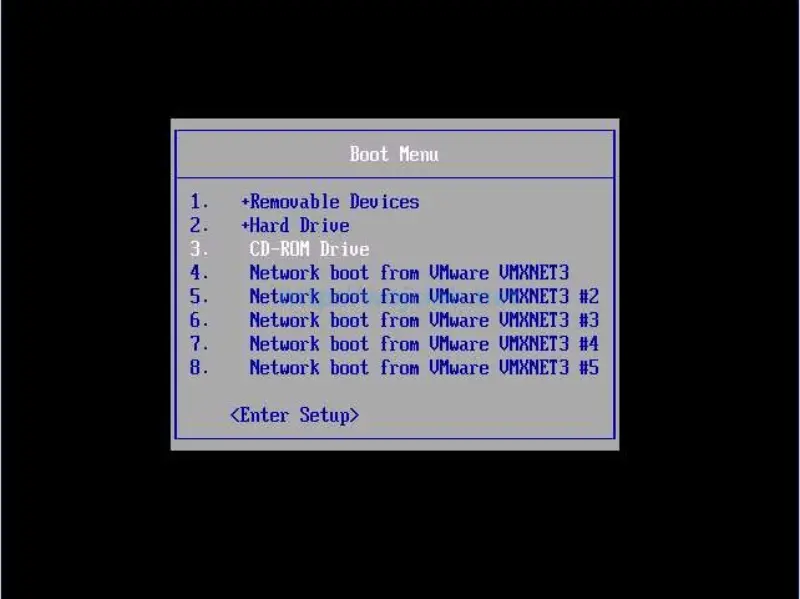

  2. Reboot ESXi and during startup choose to boot from ISO.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 1

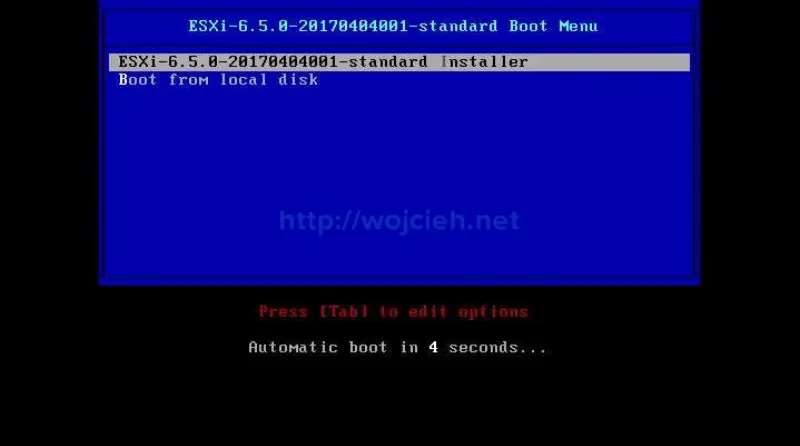

  3. Choose from boot menu ESXi and hit Enter.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 2

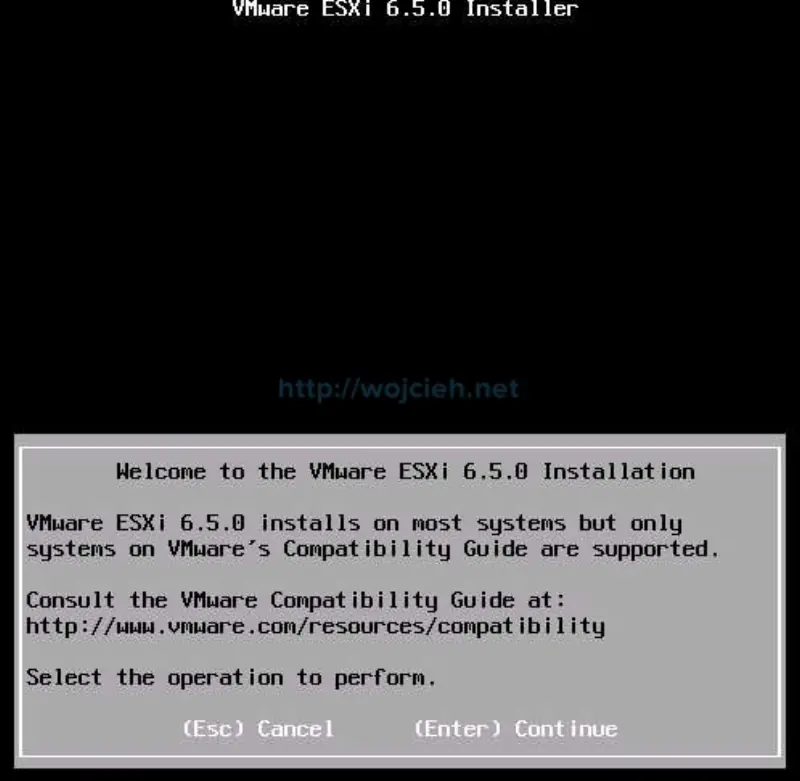

  4. Wait for ESXi installer to boot and hit Enter to continue.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 3

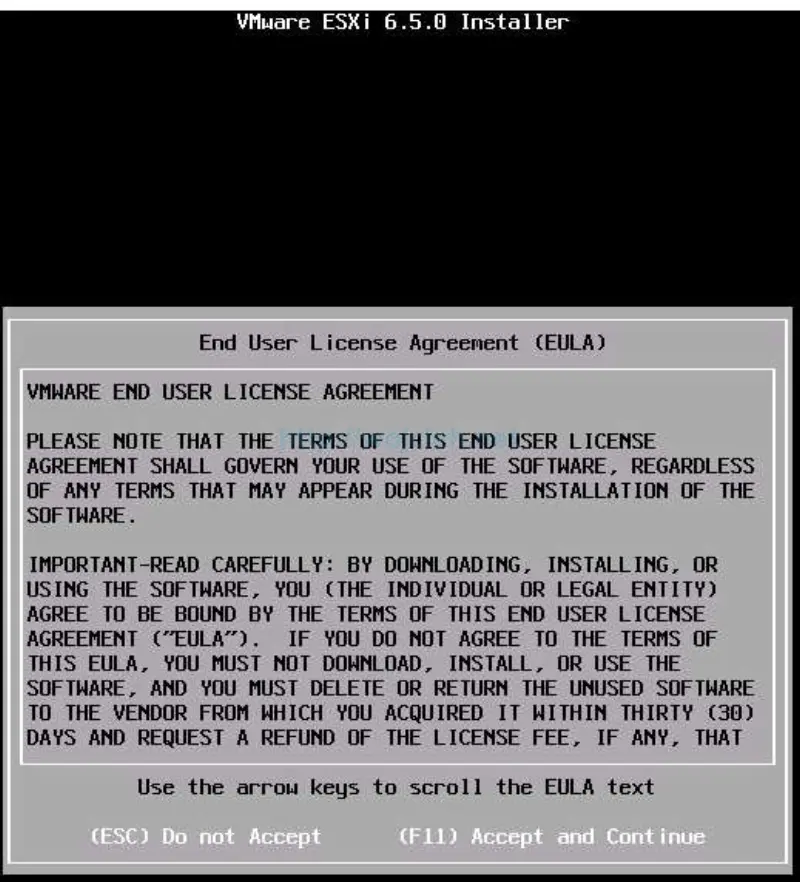

  5. Accept End User License Agreement and hit F11 to continue.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 4

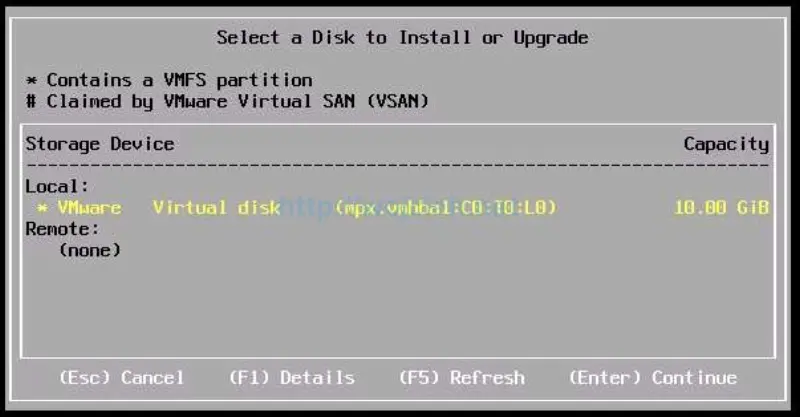

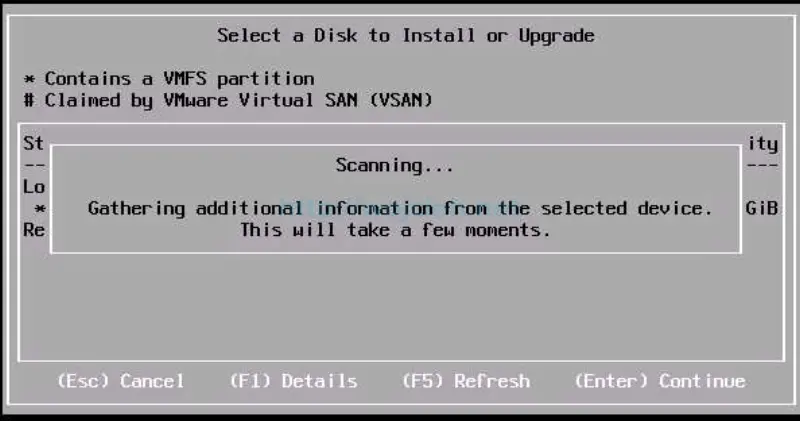

  6. An installer will scan local disks for existing ESXi installations. Select an appropriate disk and hit Enter to continue.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 5
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 6

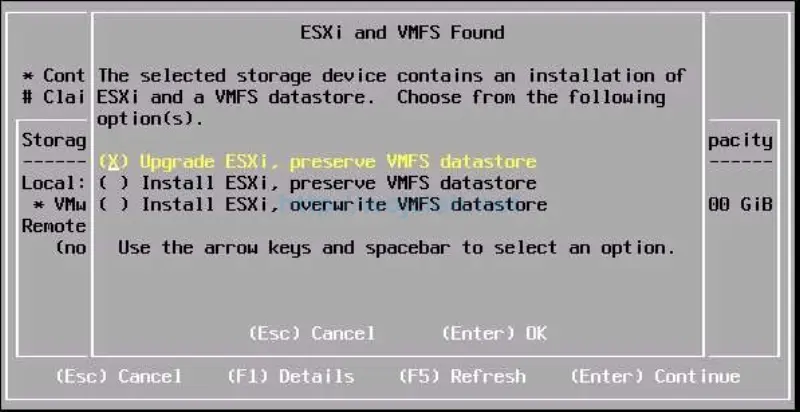

  7. The installer detected that the previous version of ESXi was installed and we will have a possibility to upgrade it. Choose Upgrade ESXi, preserve VMFS datastore.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 7

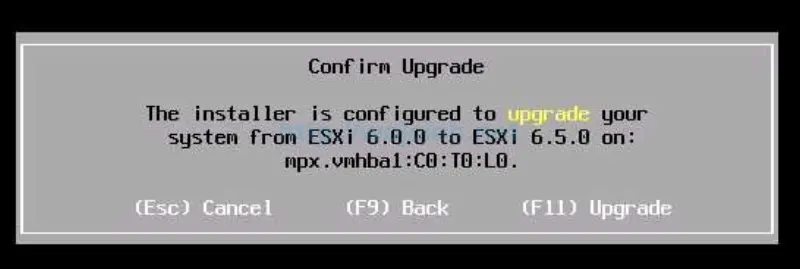

  8. As you see on the screen, ESXi Interactive Installer informs us that we are ready to upgrade ESXi 6.0 to ESXi 6.5. Hit F11 to continue.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 8

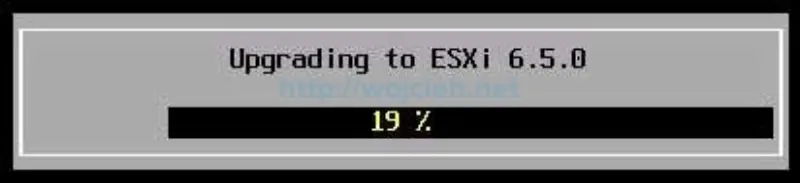

  9. Upgrade process starts.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 9

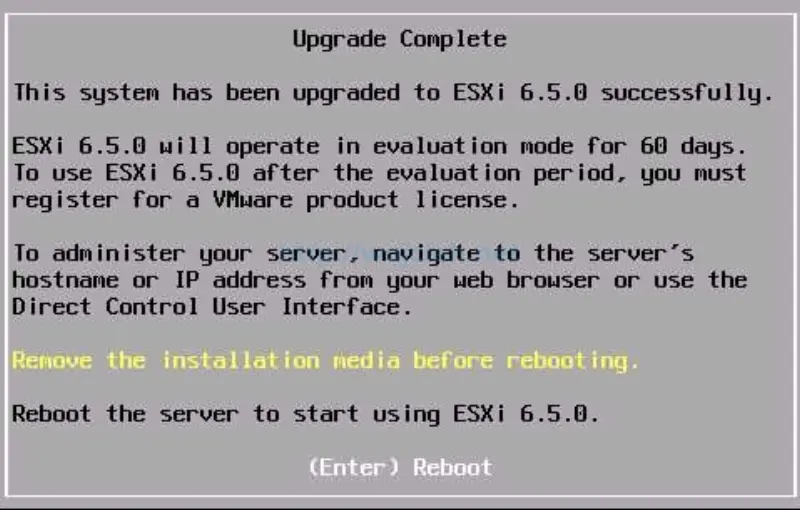

  10. After few minutes ESXi upgrade is done. What we need to do is to simply reboot the server.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 10

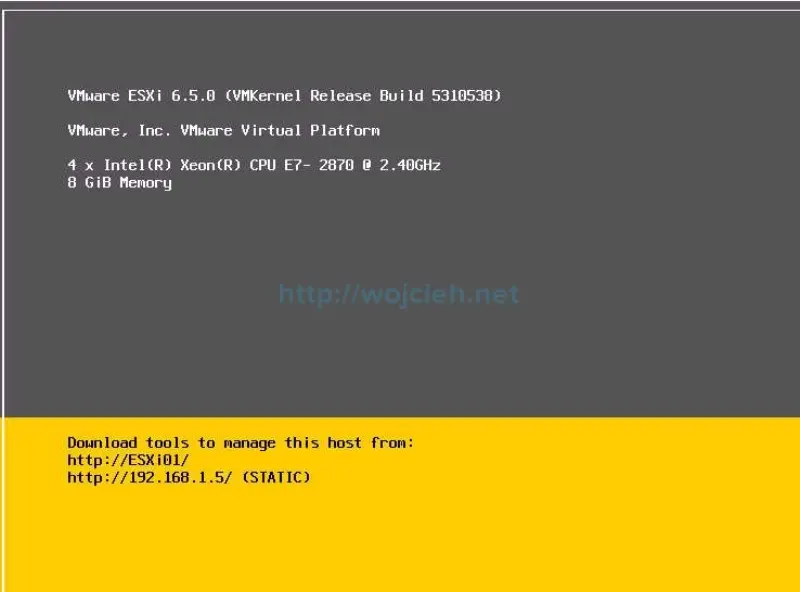

  11. Our ESXi 6.0 was successfully upgraded to version 6.5.
    How to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer - 11

Summary

In this article, I showed you how to upgrade ESXi 6.0 to ESXi 6.5 using Interactive Installer. This is not the only possible way how to upgrade ESXi and definitely, I will show you how to do it differently in following articles.
